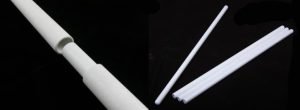

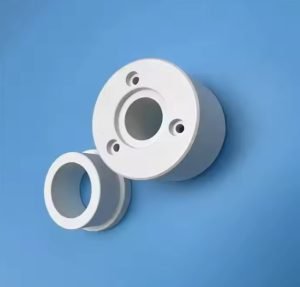

Boron Nitride Insulator

< 12" diameter x 16" length

SKU: HBN-I

Boron Nitride Insulator, BN Ceramic Insulators

In addition to high thermal conductivity, hexagonal boron nitride also has excellent insulation properties. Its band gap width is 5.2eV and its breakdown strength is as high as 35kV/mm, which makes h-BN suitable for working conditions that require both insulation and heat dissipation, which is unmatched by graphene. It is precisely because of the above excellent properties that hexagonal boron nitride is a thermally conductive filler with great application value and prospects. Edgetech Industries LLC provides processing services for boron nitride insulators.

Boron Nitride Disc Basic Information & Materials

Physical Property
Item	Units	BN99, >99.3%	BN997, >99.7%
Color	\	White	White
Density	g/cm3	2	1.6
Mechanical properties
Mohs hardness		2	2
Flexural strength	Mpa	35	20
Thermal properties
Maximum Use Temperature	in Air	900℃	900℃
	in Vacuum	1800℃	1800℃
	In Insert	2100℃	2100℃
Thermal Conductivity(20℃)	W/(m·K)	40	50
Thermal Expansion Coefficient(20℃-1000℃)	10^-6/K	2	-0.5
Electrical properties
Volume Resistivity	Ω.cm	>10^14	>10^14

Advantages of Boron Nitride Insulator

-High purity
-Low density
-Excellent electrical insulation performance
-Good thermal conductivity
-Excellent thermal shock resistance
-Low expansion coefficient
-High-temperature resistance

Application of Boron Nitride Insulator

With the development of science and technology, the requirements for miniaturization and integration of electronic products are getting higher and higher. Heat dissipation problems affect the working efficiency and service life of products, thus restricting the development of microelectronic integration technology. In recent years, researchers have further improved the thermal conductivity of hBN hexagonal boron nitride-based thermal conductive composite materials through blending, surface modification, hybridization effect, 3D structure construction, and other methods, so that they can be better used in electronic components.

-High-voltage and high-frequency arc, plasma arc insulators and various heater insulators, heating sleeves, and high-temperature, high-frequency, high-voltage insulation cooling parts, high-frequency applications of electric furnace materials

Packing

As a ceramic material, boron nitride is quite fragile in a lot of cases. Our Hot-Pressed Boron Nitride Insulator is carefully handled to minimize damage during storage and transportation. Suitable outer boxes and inner cushioning materials are used for BN products, vacuum packing is also engaged for some of the parts.
