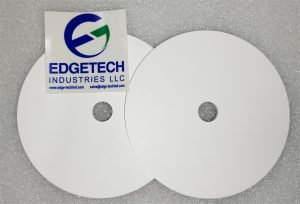

Boron Nitride (BN) Ring

Dimensions: Length: 10~400mm, ID: >2mm

SKU: HBN-R

Boron Nitride (BN) Ring



We provide standard products & tailor-made products for hot-pressed boron nitride ring. Except for pure BN99 ring, we also supply BN composites with silicon carbide, calcium borate, aluminum nitride and zirconia, to fulfill various of demand for the customers. Check the boron nitride specifications for our pure BN99 and zirconia composite material ZSBN.



Boron Nitride Ring Basic Information & Materials



MaterialBN99, BN60, ZSBN, BN-AlN, HBR, ZSBN
Molecular Weight24.82
AppearanceWhite
Melting Point2973 °C
Density2.1 g/cm3 (h-BN); 3.45 g/cm3 (c-BN)
Solubility in H2OInsoluble
Refractive Index1.8 (h-BN); 2.1 (c-BN)
Electrical Resistivity13 to 15 10x Ω-m
DimensionsLength: 10~400mm, ID: >2mm



Boron Nitride Materials



MaterialDescription
BN99Hot pressed at high temperature (1900℃).
Excellent corrosion resistance and thermal conductivity. Limited wear resistance
Self-bonded and high purity (>99%)
BNBOGeneral purpose material
Bonded by boric oxide
BNCBCalcium borate bonded boron nitride
Enhanced moisture resistance
BN60BN 60%, SiO2 40%
BN40BN 40%, SiO2 60%
ZSBNBN-45%, Zr2O3 45%



Boron Nitride Ring Advantages & Applications:



Boron Nitride ceramic from Edgetech Industries Ceramics Division can withstand high temperature in the high vacuum environment, plus it has excellent corrosion resistance and electrical resistance.

-Low wettability to molten metal
-Relatively high thermal conductivity with low thermal expansion
-Relatively high thermal shock resistance
-Extremely high working temperature with proper inert gas protection (>3000C has been recorded).

Based on the above properties, Boron Nitride Ring is an ideal choice in a wide range of industries, such as:
-Used in nozzles for nonferrous metals metallurgy industry

-Used as break rings for horizontal casting machine
-Used in insulators for high temperature furnace
-Used to feed through for high voltage equipment
-Used in Boron Nitride parts for ion injection equipment



Packing



As a ceramic material, boron nitride is quite fragile in a lot of cases. Our Hot-Pressed Boron Nitride Ring is carefully handled to minimize damage during storage and transportation. Suitable outer boxes and inner cushioning materials are used for BN products, vacuum packing is also engaged for some of the parts.
